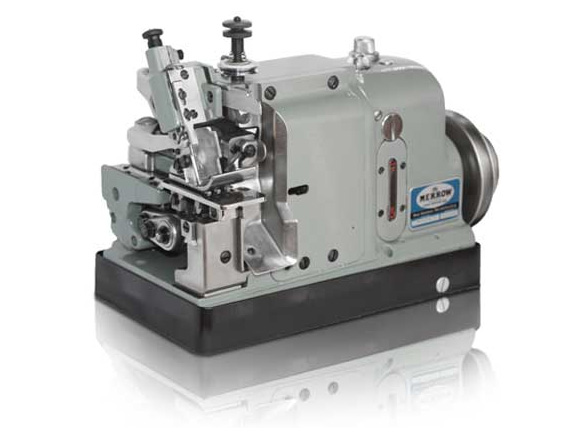

70-D3B-2 RAIL Butted Sewing Machine for Railways

Merrow's Butted Seam Rail Machine is specifically designed to be mounted on a railway sewing system. The 70-D3B-2 RAIL is ideal for straight and square seams and for when wide material is seamed.

The Advantage of the 70-D3B-2 RAIL

The 70-D3B-2 RAIL is an end-to-end seaming sewing machine from Merrow, specially built for the continuous processing of fabric on semi-automated, or fully-automated equipment.

The Merrow Rail sewing head will fit all European and American made Sewing Railways

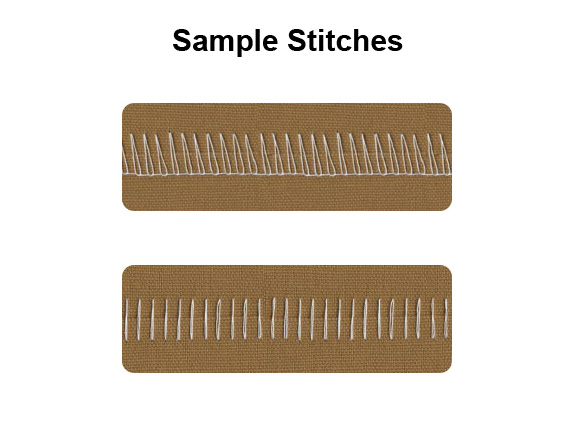

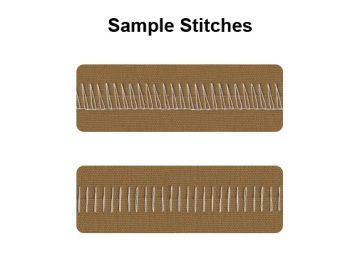

The Merrow Model 70-D3B-2 RAIL industrial sewing machine is derived from the industry standard Merrow 70-D3B-2 sewing machine for the endwise joining of piece goods. The 70-D3B-2 RAIL is a single thread machine with cutters that is produces a strong, flat, 5/8” stitch on a wide range of fabric.

WHY it's better

Railway operations create straighter more consistent seams across wide fabrics. The Merrow 70-D3B-2 RAIL when paired with a American or European Railway reduces spare parts consumption (fewer broken needles, needle carriers) and improves the quality of the seaming process.

HOW it's better

The Merrow 70-D3B-2 RAIL has an Adapted Design for pro-active feeding..the Merrow RAIL sewing head is designed to be pushed across the fabric by the railway (as opposed to pulling the fabric through on its own feed system).

WHERE it's used

the 70-D3B-2 RAIL is only used on railways, and the combined unit is often used in the following processes: Continuous Bleaching, Mercerising, Scouring, Washing, Drying, Pad & Steam Dyeing, Printing, Steaming, Shrinking (Sanforizing), Finishing, Tubular Processing, Slitting & De-twisting, Heat Setting, Napping & Shearing, Singeing, Calendering
