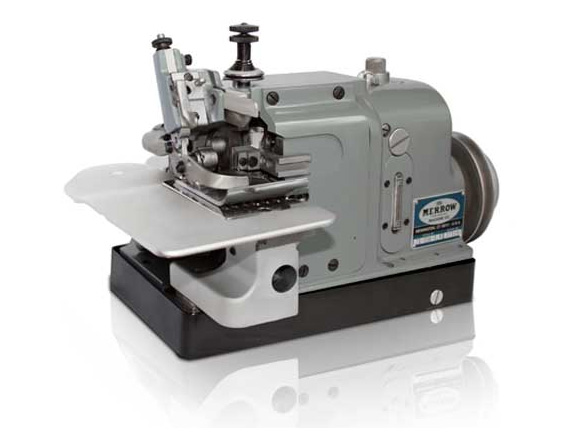

72-D3B-2_R Butt Sewing Machine
Call for pricing
The 72-D3B-2 R is designed to sew a rolled seam on loose knit and/or low count material. Like the 72-D3B-2 the "R" version has an extended feed and cutting system for superior fabric handling.
Designed with:
- WIDE FEED SYSTEM
- NO cutting system
- and THREE FEED DOGS
- for superior fabric handling the 72 Class machines have become a favorite for Knit goods and a variety of non-woven processes

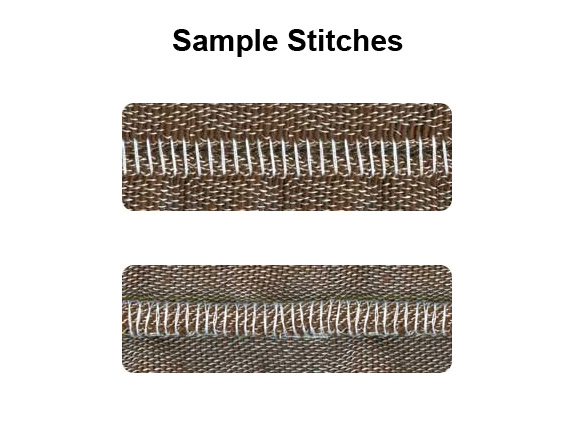

The 72-D3B-2_R Series ROLLS THE FABRIC as it sews creating a tough buttseam for loose knit or woven materials
| OPERATING SPEED | 2250 RPM |
| STITCH WIDTH | 16MM (5/8") |
| STITCH RANGE | 152.4 SPMM (6 SPI) |
| STANDARD NEEDLE | MERROW 8SDT |
| MERROW NEEDLE RANGE | MERROW 3SDT-8SDT |
| FEDERAL STITCH TYPE | 504 |
| STITCHES PER MM | 101MM - 305MM (4-12 SPI) |
| NUMBER OF THREADS | SINGLE THREAD |
