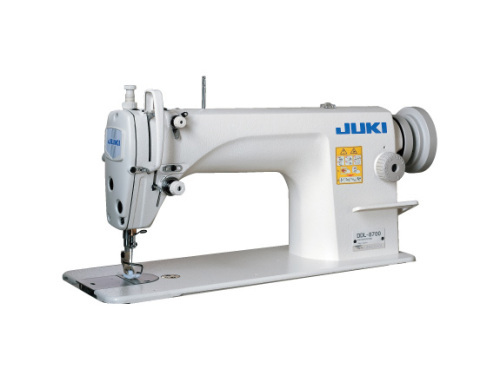

Juki DDL-8700L Lockstitch Machine
1-needle, Lockstitch Machine for Leather and Heavy Materials
This is a newly designed JUKI's unique lockstitch machine. The machine is able to sew at a pitch as long as 7mm for both normal and reverse feed directions.
With the adoption of a feed mechanism and thread takeup lever, the machine achieves increased efficiency of feed and well-tensed stitches. It is a basic lockstitch machine suited for sewing leather or heavy materials such as bags, pouches and purses.
Increased productivity
The machine runs at higher sewing speeds than any other lockstitch machine intended for heavy materials anywhere in the world, reaching, up to 4,000sti/min for stitch length of less than 5mm and 3,500sti/min for stitch length of up to 7mm. The result is dramatically increased productivity.
The machine has easy-to-operate functions to achieve improved operability
The wider distance from the machine arm to the needle on the front of the machine head, smoothened design of the machine head, larger needle bar stroke (35 mm), and higher lift of the presser foot (13 mm) enable easy handling of heavy material. In addition, the machine is equipped with a handwheel that is larger than normal for easy turning.
| MODEL NAME | DDL-8700L | ||
|---|---|---|---|
| Max. sewing speed | 4,000sti/min* (for stitch length less than 5mm) 3,500sti/min* (for stitch length up to 7mm) |
||
| Max. stitch length | 7mm(normal/reverse feed) | ||
| Needle bar stroke | 35mm | ||
| Lift of the presser foot | By hand: 5.5mm, By knee: 13mm | ||
| Needle (at the time of delivery) | DB×1(#21)#16~#23 or DP×5 | ||
| Presser foot | Fluorocarbon resin presser foot | ||
| Feed dog | 3-row | ||
| Hook | Automatic-lubricating full-rotary hook | ||
| Lubrication | Automatic | ||
| Lubricating oil | JUKI Machine Oil No.7 (equivalent to ISO VG7) | ||
| Weight of the machine head | 28kg | ||
*"sti/min" stands for "Stitches per Minute."
