Juki DU-1181N Lockstitch Machine
Call for pricing

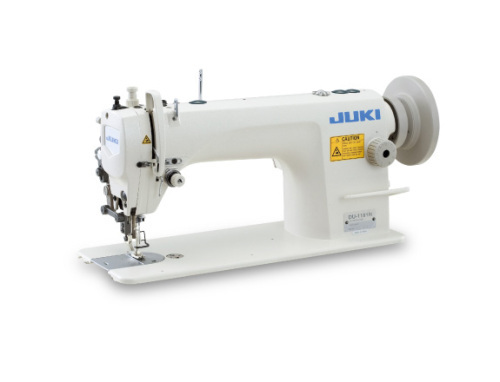

Juki DU-1181N Single Needle Straight Stitch Industrial Walking Foot Sewing Machine
With its powerful top and bottom feed mechanism, the machine smoothly feeds a difficult-to-feed material or a multi-layered part of material without pitch errors, achieving consistent seam quality.
Higher lift of the presser foot
The lift of the presser foot, by the knee lifter, is as high as 15 mm so as to support processes which require a higher lift of the presser foot, such as piping and tape-attaching.
The maximum stitch length is 9 mm
With its stitch length being as large as 9 mm, the machine is applicable to a broader range of sewing processes.
The double-capacity hook is provided as standard
The machine comes with a horizontal-axis double-capacity hook, not only to decrease the frequency of bobbin thread changing, but also to enable sewing work with increased efficiency.
| Model name | DU-1181N | ||
|---|---|---|---|
| Max. sewing speed | 2,000sti/min* | ||
| Max. stitch length | 9mm (forward/backward) | ||
| Needle bar stroke | 36.5mm | ||
| Lift of the presser foot | By hand: 5.5mm, By knee: 15mm | ||
| Thread take-up | Link type | ||
| Alternating vertical movement | 2~5mm | ||
| Hook | Horizontal-axis full-rotary double-capacity hook | ||
| Needle (at the time of delivery) | DP×17 (#21) #14~#23 *The DB×1 needle can also be used. | ||
| Thread | #40~#8 | ||
| Pitch changing method | By dial | ||
| Knee-lifter mechanism | Built on the machine head | ||
| Lubrication | Automatic | ||
| Lubricating oil | JUKI MACHINE OIL No.7 (equivalent to ISO VG7) | ||
| Distance from needle to machine arm | 261mm | ||
| Bed size | 477mm×178mm | ||
| Weight of the machine head | 31kg | ||
*"sti/min" stands for "Stitches per Minute."
