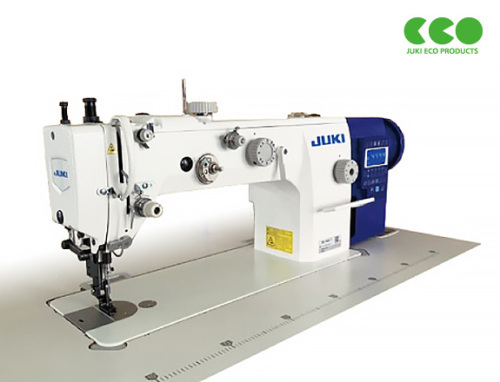

Juki DU-1481-7 Lockstitch Machine
Direct-drive, 1-needle, Top and Bottom-feed, Lockstitch Machine with Double-capacity Hook with Automatic Thread Trimmer
The machine achieved a longer distance from machine arm to needle by adopting a high long arm.
The DU-1481-7 is suited to the sewing and decorative shape-tacking of heavy-weight materials such as car seats, sofas, bags and stroller.
Increased productivity by improved operability
The machine achieves a longer distance from machine arm to needle by adopting a high long arm.
This means the machine dramatically increases workability when sewing large products such as sofas and car seats.
Needle thread clamping device
The needle thread device is standard equipment. As a result, the needle thread at the start of sewing does not come out on the cloth, so the start of sewing beautiful finished seams.
Operators use scissors less often and can prevent damage to the material caused by thread picking.
Feed mechanism
The machine's powerful top & bottom feed demonstrates its performance when sewing car fabric seats. The lift of the presser foot is as high as 16 mm, which responds to the sewing of heavy-weight materials.
| Model name | DU-1481-7 |
|---|---|
| Max. sewing speed | 2,200sti/min* |
| Max. stitch length | 9mm (forward / backward) |
| Needle bar stroke | 38mm |
| Lift of the presser foot | By hand: 7mm, By knee: 16mm |
| Thread take-up | Link type |
| Alternating vertical movement | 2~5.5mm |
| Hook | Horizontal-axis full-rotary double-capacity hook |
| Needle | DP × 17 #23 (#18~#24) |
| Thread | #30~#8 |
| Pitch changing method | By dial |
| Lubrication | Automatic |
| Lubricating oil | MACHINE OIL No.18 (ISO VG18 equivalent) |
| Distance from needle to machine arm | 335mm×150mm |
| Weight of the machine head | 37kg |
*"sti/min" stands for "Stitches per Minute."
