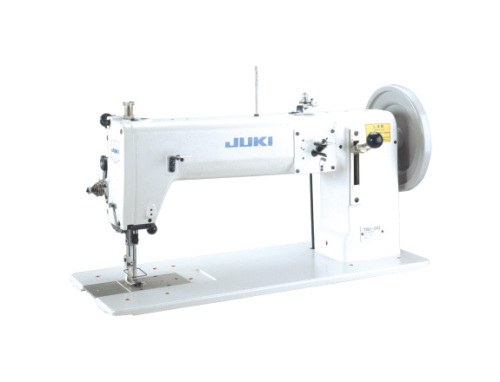

Juki TU-273U Lockstitch Machine
1-needle, Semi-long Flat Bed, Lockstitch Machine with a Large Shuttle-hook for Extra-heavy-weight Materials
The machine is optimally suited for the sewing of extra-heavy-weight materials such as tents, seat belts, and bag handles.
The machine is optimally suited for the sewing of extra-heavy-weight materials
The machine is optimally suited for the sewing of extra-heavy-weight materials such as tents, seat belts, and bag handles.
TU-273U (Top & bottom feed)
The top feed amount is adjustable within the range of ±20% of the bottom feed amount.
TNU-243U (Unison feed)
Thanks to the TNU-243U’s unison-feed mechanism, the machine’s higher feed efficiency guarantees the output of high-quality seams free from uneven material feed.
Higher lift of the presser foot
The lifting range of the presser foot is as high as 20mm for smooth placement/removal of extra-heavy-weight materials.
Frequency of bobbin thread replacement is reduced
The machine comes with a large shuttle-hook. This type of shuttle-hook helps to reduce the frequency of bobbin thread replacement and is best suited for the sewing of extra-heavy-weight materials sewn with lower-count threads.
The bobbin winder is built into the front portion of the machine
The bobbin winder is built into the front portion of the machine arm for easy manipulation.
| Model name | TU-273U | TNU-243U | ||||
|---|---|---|---|---|---|---|
| Feed system | Top & bottom-feed | Unison-feed | ||||
| Max. sewing speed | 800sti/min* | |||||
| Max. stitch length | 15mm (normal/reverse feed) | |||||
| Needle bar stroke | 56mm | |||||
| Lift of the presser foot | By hand: 12mm, By pedal: 20mm | |||||
| Alternating vertical movement |
4~8mm | |||||
| Thread take-up | Cam-type | |||||
| Hook | Large shuttle-hook | |||||
| Needle (at the time of delivery) |
794 (Nm230) Nm130~Nm280 or DY×3 #21~#28 | |||||
| Thread | #8~#0, B92~B277, Nm=30/3~8/3 | |||||
| Lubrication | By an oiler | |||||
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) | |||||
| Bobbin wider | Built on the machine arm | |||||
| Distance from needle to machine arm |
420mm | |||||
| Bed size | 656mm×253mm | |||||
| Weight of the machine head | 65kg | |||||
*"sti/min" stands for "Stitches per Minute."
